WACP-1B N120/N100 0.36x Wide Angle Conversion Port with Integrated Float Collar and Interchangeable Port Mounting Ring

SKU # 85206

$ 4,832.00

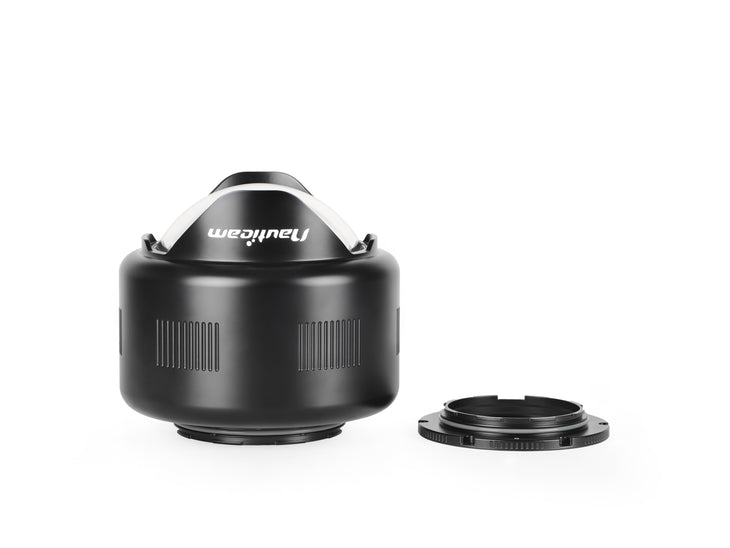

The WACP-1B is a 0.36x Wide Angle Conversion Port. Unlike traditional ports or wet-mate corrective wide-angle optics, the WACP-1B is a "dry" corrective optic that modifies a 28mm equivalent lens to an extremely sharp 130º.  Not only is the newer WACP-1B smaller and lighter, but it now integrates a built in buoyancy collar and offers a user interchangeable port mount from N120 to N100.


Technical Specifications

Depth Rating 150m
Weight (in air) 3.70 kg
Weight (in water) Negative 0.01kg
Body Construction Hard-anodized Aluminum Alloy
Lens Construction 6 Elements in 5 Groups
Lens Coating Anti-reflective on both sides
Mount System Interchangeable  N120 or N100 Mount

Introducing WACP-1B N120/N100 0.36x Wide Angle Conversion Port with Integrated Float Collar and Interchangeable Port Mounting Ring

Focus

The WACP can focus from its front element to infinity in-water allowing for extremely close-focus wide angle shooting. When used with certain zoom lenses, the WACP can provide a variety of field-of-view options.

Buoyancy Collar

An aluminum float collar is integrated into the WACP-1B and brings the in-water buoyancy 0.01kg negative.

Compatible Lenses

The WACP is designed to function at the full-frame equivalent focal length of 28mm. A wide variety of lenses are supported, both primes and zooms for Nikon, Canon and Sony as well as Super35 Cinema Systems. Please check the PORT CHART for supported lenses and suggested configurations as some lenses will require extension rings or adapters.



    Resources

    resources

    Included in the Box

    • Front Hard Cap
    • N120 and N100 Bayonet Adaptor
    • Rear Port Cap (N100 and N120)
    • Carrying Bag

    Instruction Manual
